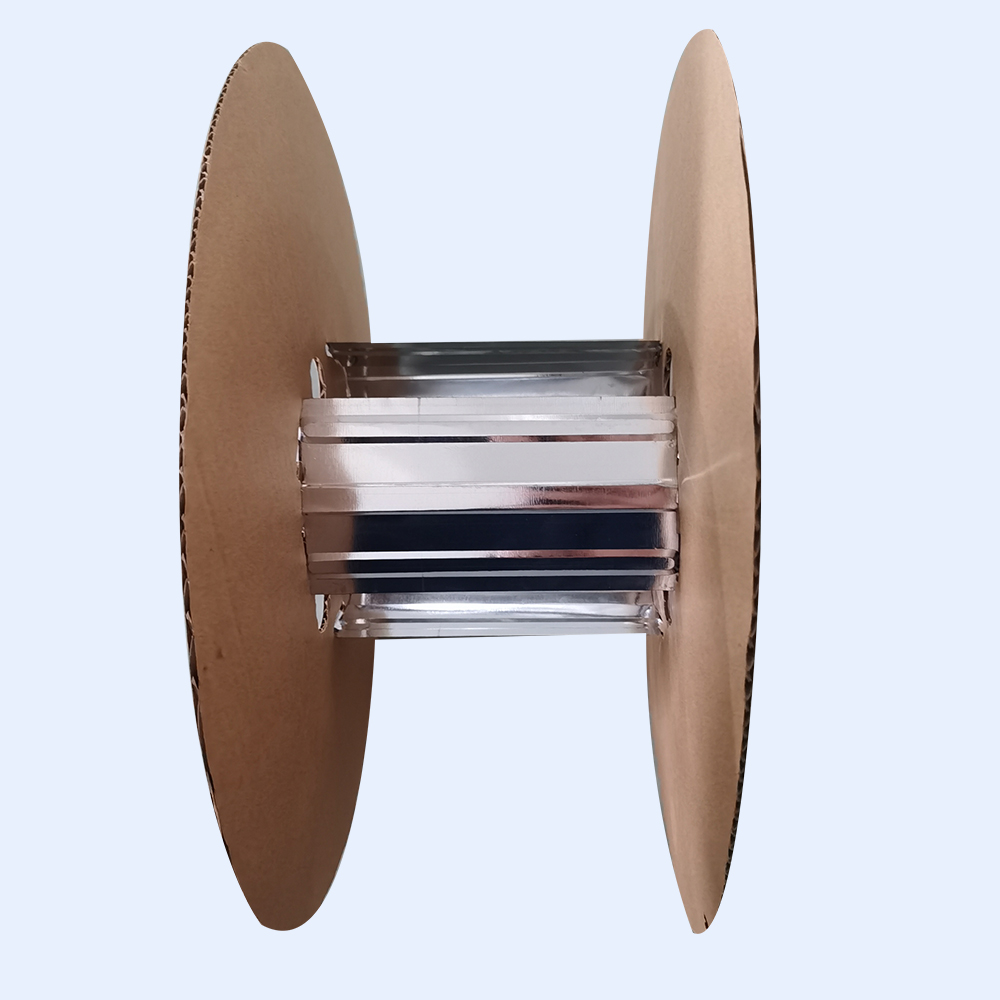

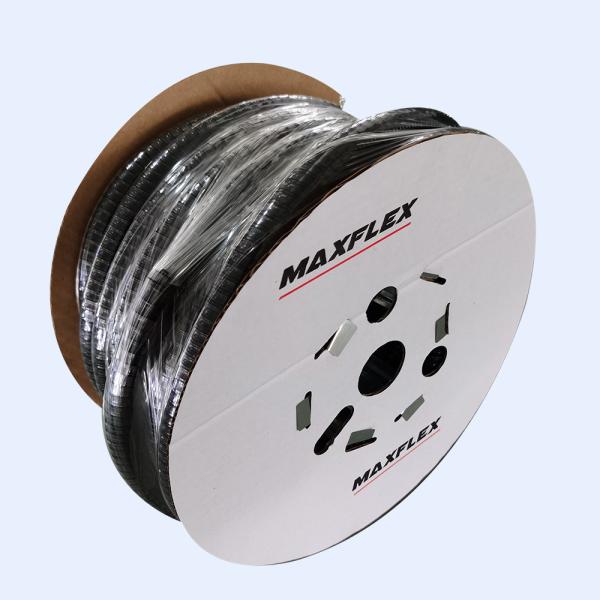

20mm 25mm GI Pvc Coated Flexible Conduit Middle East Markets Spool
Package 15 Meters Per Package
Description
- Corrosion resistant hot-dipped zinc
- FT–4 rated PVC jacket
- UV Resistant
- Felxible in cold weather
- Sequential Print in meters printed on jacket
- Standard Color: Black. Additional colors available upon request
Applications
- OEM’s
- Equipment builders
- CSA Equipment
- Where flexible connections are required
Features and Benefits
- Superior temperature ratings
- Hot dipped zinc galvanized low carbon steel core
- UL bonding strip 3/8“ – 11⁄4” for grounding
- Sunlight resistant
- Flame retardant PVC jacket – Grey
Applications
- High temperature use
- Machine tool wiring applications
- Ideal for cold climate installations
- Direct burial and concrete embedment
- Bond wire for grounding in sizes 3/8“ – 11⁄4” NEC® 250.118(6)
- Hazardous locations per NEC® 501
- Site lighting and other outdoor wiring jobs
Construction
The Type Hi-Low Liquidtight Flexible Steel Conduit shall be formed
from
a zinc coated galvanized low carbon steel strip having a uniform
width and thickness. The construction shall be in accordance with
UL 360. The finished Type Hi-Low LFMC dimensions shall be in
accordance with Table 5.1 of UL 360 which is summarized in Table 3.
Jacket – PVC
A rugged moisture, oil and sunlight resistant polyvinyl chloride
(PVC) jacket shall be applied directly over the flexible metal
conduit with a wall thickness in accordance with Table 4.1 of UL
360.
| LF-10 | 3/8" | With cotton wire,pvc jacket |
| LF-11 | 1/2" | With cotton wire,pvc jacket |
| LF-12 | 3/4" | With cotton wire,pvc jacket |
| LF-13 | 1" | With cotton wire,pvc jacket |
| LF-14 | 1-1/4" | With cotton wire,pvc jacket |
| LF-15 | 1-1/2" | With cotton wire,pvc jacket |
| LF-16 | 2" | With cotton wire,pvc jacket |
| LF-17 | 2-1/2" | With cotton wire,pvc jacket |
| LF-18 | 3" | With cotton wire,pvc jacket |
| LF-19 | 4" | With cotton wire,pvc jacket |
General:
For protectiong the electrical wire, all the steel coil thickness
exceeding 3.5mm to assure 190 ponds pressure, avoid the heavy item
press flexible conduit abnormally. galvanized thickness eceeding 40
micrometer anti rust,Inside with the cotton wire to make the pvc
flat and wiring easily.
Features:
1) Hot-dip/electro-gal.steel coil material work temp.-25 to 350
degree
2) All package meters available 15meter,25meter,30meter and
100feet.
3) The PVC part durable and reach to IP6 anti fire
Why Choose Ranlic Flexible Conduit
We are sending samples free of charges
All testing and the production in the our factory to assure the
quality
When start buying our products,if destination markets growing
fastly ranlic
will pay advertisment in customer's market to help our customer
publishing
our brand.
| 1/2" 1.05mm thickness | gray pvc white or black as customer require |
| 3/4" 1.30mm thickness | |
| gray pvc white or black as customer require | |
Descriptions of pvc electric fittings/pvc electrical conduit
1) Hot-dip/electro-gal.steel coil material; work temp: -25 to 120
degree.
2) All package meters available 15m,25m,30m and 100feet.
3) For general wiring installation provides for goos flexible
bending & vibration.
4) The PVC jacket color: grey or black. LSOH PVC jacket material
available.
Size & details:
| INSIDE DIA. | OUTSIDE DIA. | ITEM | PITCH | GAL.COIL | MIN.BEND | STANDARD |
| IN. | MM | MM | CODE | MM | THICKNESS | RADIUS | PACKAGE METERS |
| 3/8" | 12mm | 16.30mm | RL-F60 | 4.70mm | 0.20mm | 50 Degree | 100 Meters |
| 1/2" | 15mm | 19.70mm | RL-F61 | 5.70mm | 0.20mm | 65 Degree | 50 Meters |
| 3/4" | 20mm | 25.10mm | RL-F62 | 6.40mm | 0.22mm | 75 Degree | 30 Meters |
| 1" | 25mm | 31.00mm | RL-F63 | 8.70mm | 0.22mm | 100 Degree | 30 Meters |
| 1-1/4" | 32mm | 40.30mm | RL-F64 | 10.50mm | 0.30mm | 125 Degree | 15 Meters |
| 1-1/2" | 38mm | 45.80mm | RL-F65 | 11.40mm | 0.31mm | 150 Degree | 15 Meters |
| 2" | 50mm | 57.10mm | RL-F66 | 11.40mm | 0.35mm | 175 Degree | 10 Meters |
| 2-1/2" | 63mm | 70.80mm | RL-F67 | 14.20mm | 0.45mm | 200 Degree | 10 Meters |
| 3" | 75mm | 85.90mm | RL-F68 | 14.20mm | 0.50mm | 225 Degree | 5 Meters |
| 3-1/2" | 83mm | 95.55mm | RL-F69 | 14.20mm | 0.60mm | 230 Degree | 5 Meters |
| 4" | 100mm | 108.50mm | RL-F70 | 14.20mm | 0.60mm | 275 Degree | 5 Meters |
