    UL Listed Steel IMC Electrical Conduit 3" With Coupling 10 Feet Length

    Ask Lasest Price
    Brand Name : RANLIC
    Model Number : RL-E470S
    Certification : UL Certificate
    Price : negotiation
    Supply Ability : 3000 tons/mounth
    Delivery Time : 25 days 10 containers
    • Product Details
    • Company Profile

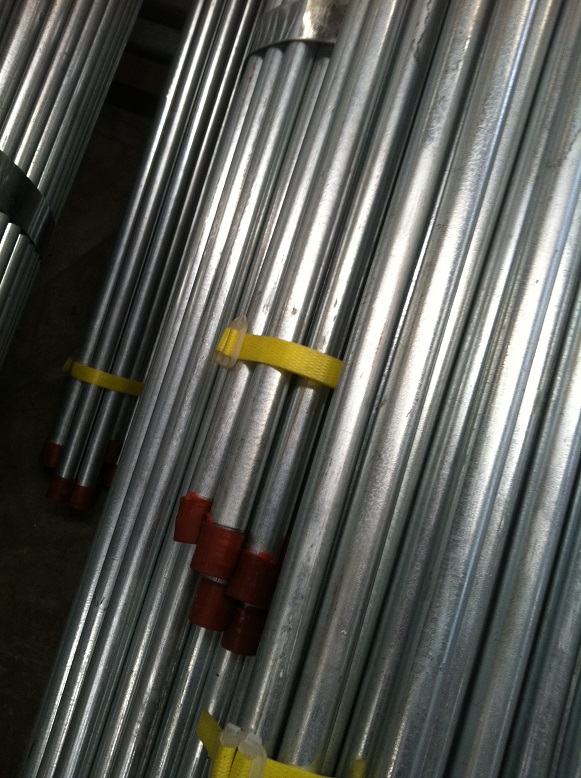

    UL Listed Steel IMC Electrical Conduit 3" With Coupling 10 Feet Length


    3"4" Steel IMC Conduit UL listed Hot Dip Galvanized With Coupling 10feet Length

    UL LISTED FILE NO.: E476169


    Specifications

    imc conduit/galvanized imc conduit /imc steel pipe
    1. OD:0.5inch-14inch
    2. WT:1.0mm-10mm
    3. Standard:GB/T,EN,ASTM
    4. Payment:T/T


    Quick Details:


    Standard: BS 1387, BS 1139, BS EN10025, BS EN 3...

    Grade: 10#-45#, 16Mn, A53-A369, ST35-ST52, Q195...
    Grade: 20#, 16Mn, A53(A,B), St37, St52, St42, S...

    Place of Origin: Tianjin China (Mainland)

    Secondary Or Not: Non-secondary
    Technique: ERW

    Surface Treatment: Galvanized Pipe

    Alloy Or Not: Non-alloy
    Color: Silvery

    Certification: ISO9001-2000


    PRODUCT DETAILS

    • Material: Galvanised steel
    • Standard: UL1242 /ANSI C80.6
    • Finish: Hot-dipped galvanised
    • Size: 4" (or 1/2", 3/4", 1", 1-1/4" ,1-1/2", 2", 2-1/2", 3",3-1/2")
    • Outside diameter: 113.3mm
    • Wall thickness: 3.56mm
    • Norinal weight :29.41KG/PC
    • Length: 3.048m
    • Pieces/bundle: woven bag with steel strap.

    Charateristics and dimension:


    TRADE SIZEITEM No.DIAMETER(±0.05mm)STANDARD(UL)THIN WALLQUANTITYGAL.UL
    USMETRICINNEROUTERTHICKNESS(±0.05)THICK NONE ULPER BUNDLETHICK
    1/2"16.00RL-E47016.76mm20.70mm1.97mm1.60mm10*10ft40 micron
    3/4"21.00RL-E47122.07mm26.26mm2.10mm1.80mm10*10ft40 micron
    1"27.00RL-E47228.07mm32.77mm2.35mm1.80mm10*10ft40 micron
    1-1/4"35.00RL-E47336.77mm41.59mm2.41mm1.80mm5*10ft40 micron
    1-1/2"41.00RL-E47442.74mm47.82mm2.54mm2.10mm5*10ft40 micron
    2"53.00RL-E47554.60mm59.93mm2.67mm2.10mm5*10ft40 micron
    2-1/2"63.00RL-E47664.95mm72.57mm3.81mm2.10mm1*10ft40 micron
    3"78.00RL-E47780.67mm88.29mm3.81mm3.20mm1*10ft40 micron
    3-1/2"91.00RL-E47893.24mm100.86mm3.81mm3.20mm1*10ft40 micron
    4"103.00RL-E479105.82mm113.44mm3.81mm3.20mm1*10ft40 micron
