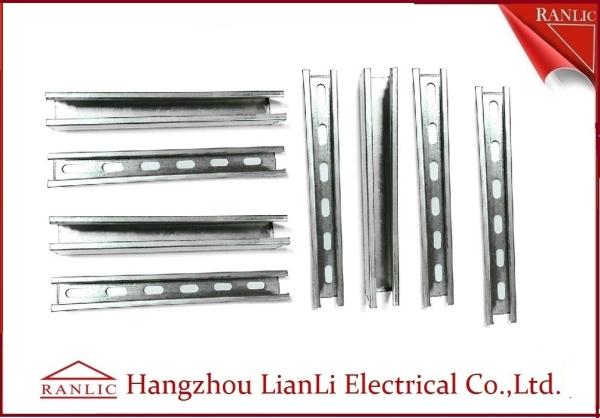

Steel Unistrut Channel U 1-5/8"(41) by 13/16"(21)Slotted or None
Slotted Electro/hot dip Galvanized
Descrition:
Strut channel is used to mount, brace, support, and connect
lightweight structural loads in building construction.
It has three kinds of surface treatment:
1) Pre-galvanized,Black ,PVC coated & hot dip galvanized
2) Can make the angle parts with slip-proof.
3) Each meter side printed with size,logo & standard
4) Gal.zinc thickness is changing according the finish different
5) The slotted hole size 1-1/8"(28.60mm)*9/16"(14.30mm)
6) Two,three,four and six meters available
Applications:
RANLIC slotted or none-slotted strut channel is a standardized
formed structural system used in the construction and electrical
industries for light structural support, often for supporting
wiring, plumbing, or mechanical components such as air conditioning
or ventilation system.
Dimension:
| NORMAL SIZE | ITEM No. | GAL.THICK(MICRO METER) | | STEEL | WALL | WEIGHT | SMALL | BIG |
| In(mm) | In(mm) | PRE.GAL. | HOT DIP | GAUGE | THICKNESS | PER METER | PKG (LGTHS) | PKG (LGTHS) |
| 1-5/8 (41) | 1-5/8 (41) | RL-ST10 | 12 to 25 | 40 to 90 | 12 | 2.50mm | 2.65 kgs | 10 | 50 |
| 1-5/8 (41) | 1-5/8 (41) | RL-ST11 | 12 to 25 | 40 to 90 | 14 | 2.00mm | 2.13 kgs | 10 | 50 |
| 1-5/8 (41) | 1-5/8 (41) | RL-ST12 | 12 to 25 | 40 to 90 | 16 | 1.50mm | 1.59 kgs | 10 | 50 |
| 1-5/8 (41) | 13/16 (21) | RL-ST13 | 12 to 25 | 40 to 90 | 12 | 2.50mm | 1.89 kgs | 20 | 100 |
| 1-5/8 (41) | 13/16 (21) | RL-ST14 | 12 to 25 | 40 to 90 | 14 | 2.00mm | 1.50kgs | 20 | 100 |
| 1-5/8 (41) | 13/16 (21) | RL-ST15 | 12 to 25 | 40 to 90 | 16 | 1.50mm | 1.13 kgs | 20 | 100 |
You may choose following RanLic other Conduit products:
EMT CONDUIT PIPE
IMC CONDUIT PIPE
RIGID CONDUIT PIPE
FLEXIBLE CONDUIT PIPE
LIQUID TIGHT FLEXIBLE CONDUIT
EMT connector(steel,zinc),
emt coupling(steel,zinc),
compression emt connector,
Compression emt coupling,
Squeez flexible connector(straight and angle),
Liquid tight connector(straight and angle),
Water tight hub
Romex connector
Conduit bushing
Service entrance cap
EMTstraps(one and two holes)
Strut clamp(for emt imc and rigid)
Beam clamp, emt elbow
Conduit hanger
Steel outlet box
EMT/IMC/RIGID conduit body
IMC/RIGID coupling,
steel and zinc locknut
emt imc rigid elbows
Clevis hangers
Springier hanger
conduit nipple
water proof terminal box
ETC................................
Specifications:
TOPELE slotted STRUT CHANNEL
Type: plain or slotted strut channel
Finish: Black, Pre-galvanized and Hot Dipped Galvanized
Thickness: 1.5mm-3.0mm
Length: 3 meters, other length could be available.
Available Size:
41X41mm, 41X21mm
41x25mm, 41x35mm
41x62mm, 41x82mm
41x41mmx2, 41x25mmx2
41x35mmx2, 41x41mmx2
41x62mmx2, 41x82mmx2
Other sizes be produced according to customer’s drawing.
Why Choose Ranlic Strut Channel:
1) With Competitive prices
2) The U angle Place is 90 Degree
3) Slotted hole without bur
4) Quick shipment and safety

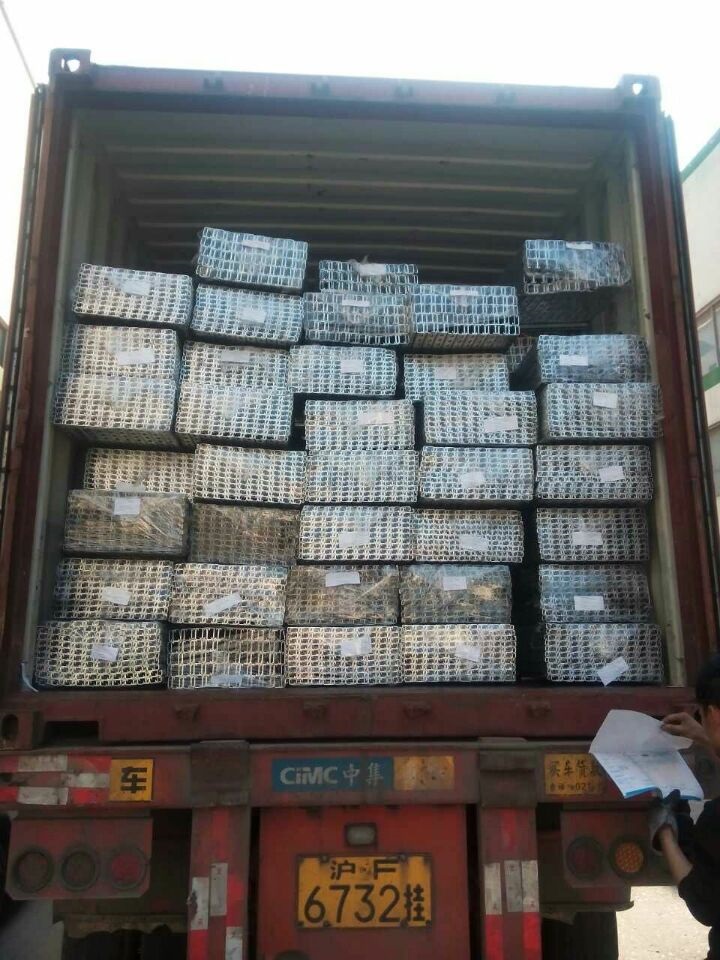

The Package:
